TVS1900 Supercharger System | 2016-2023 Tacoma 3.5L V6

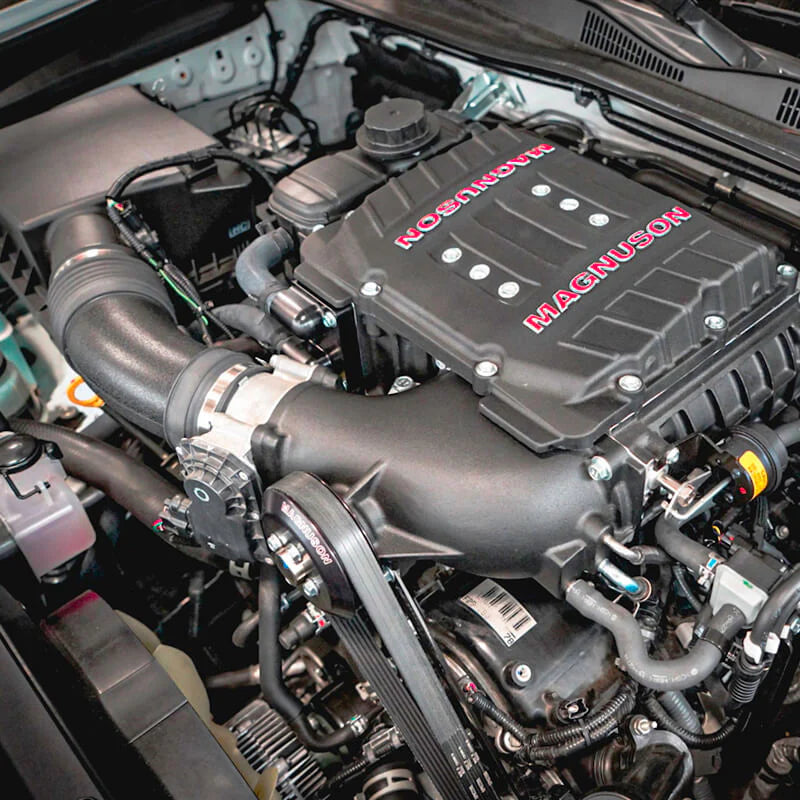

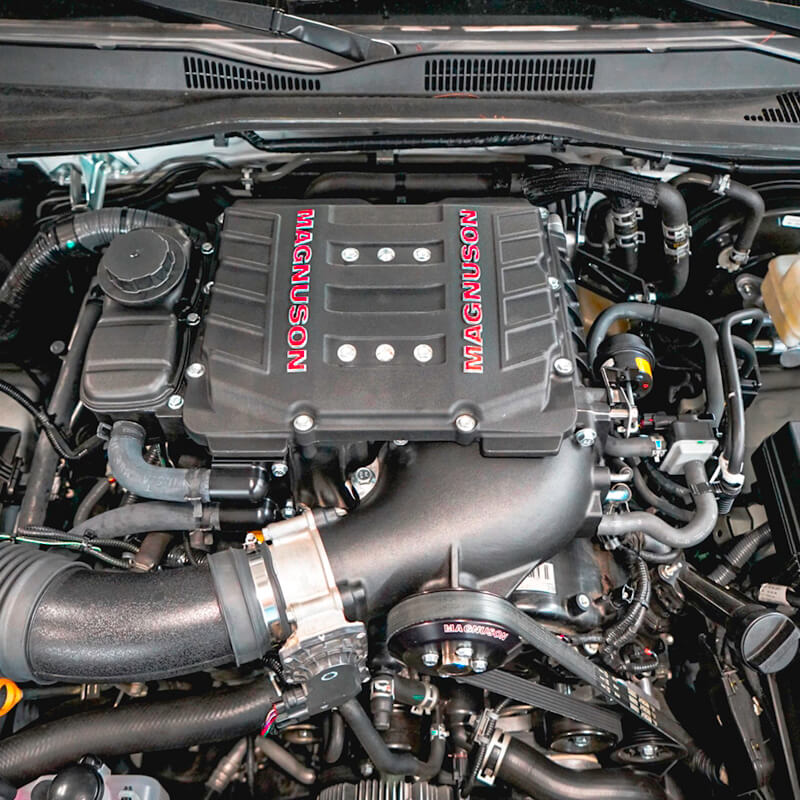

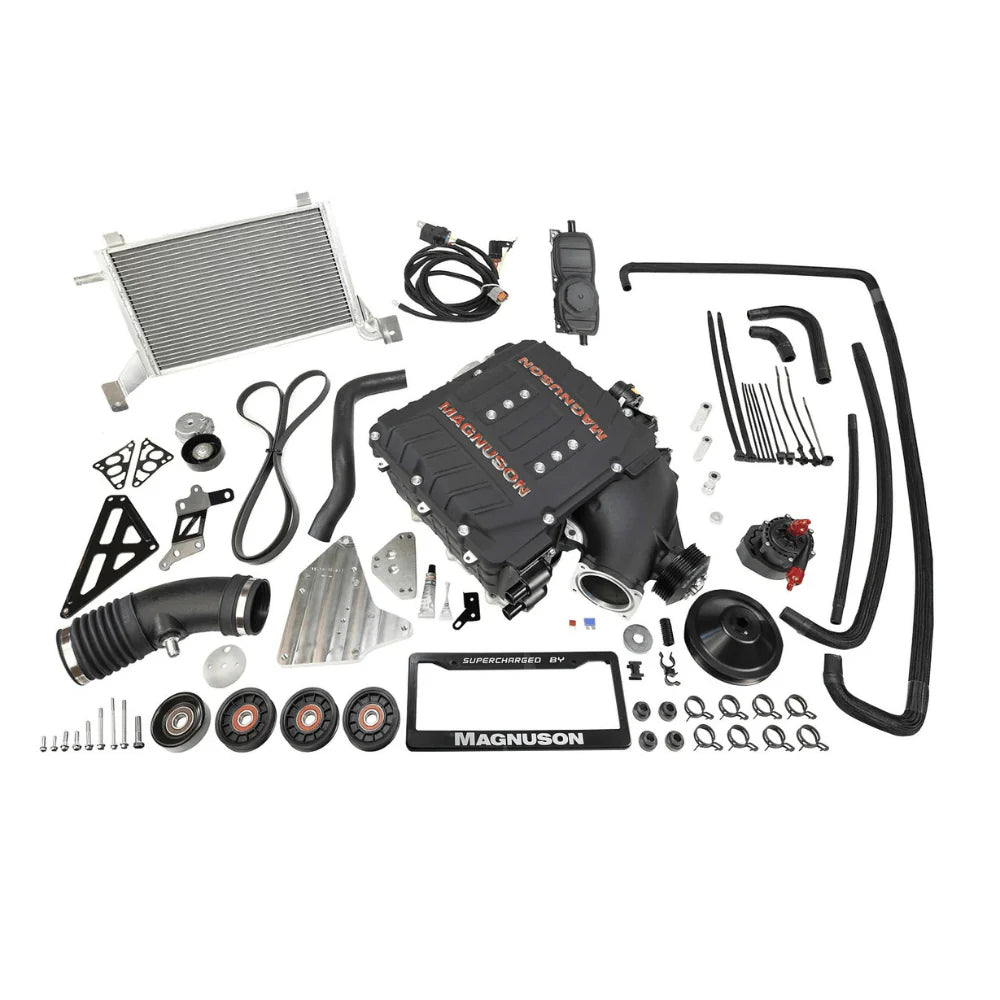

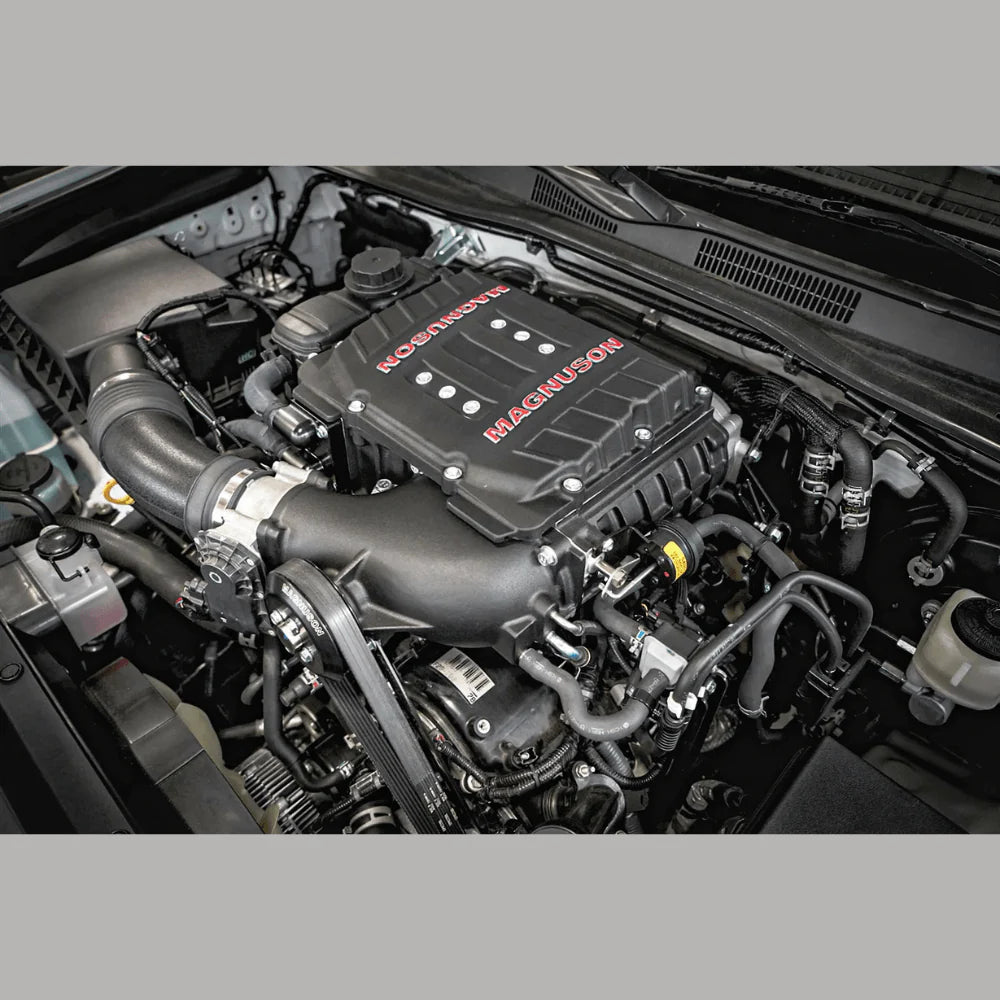

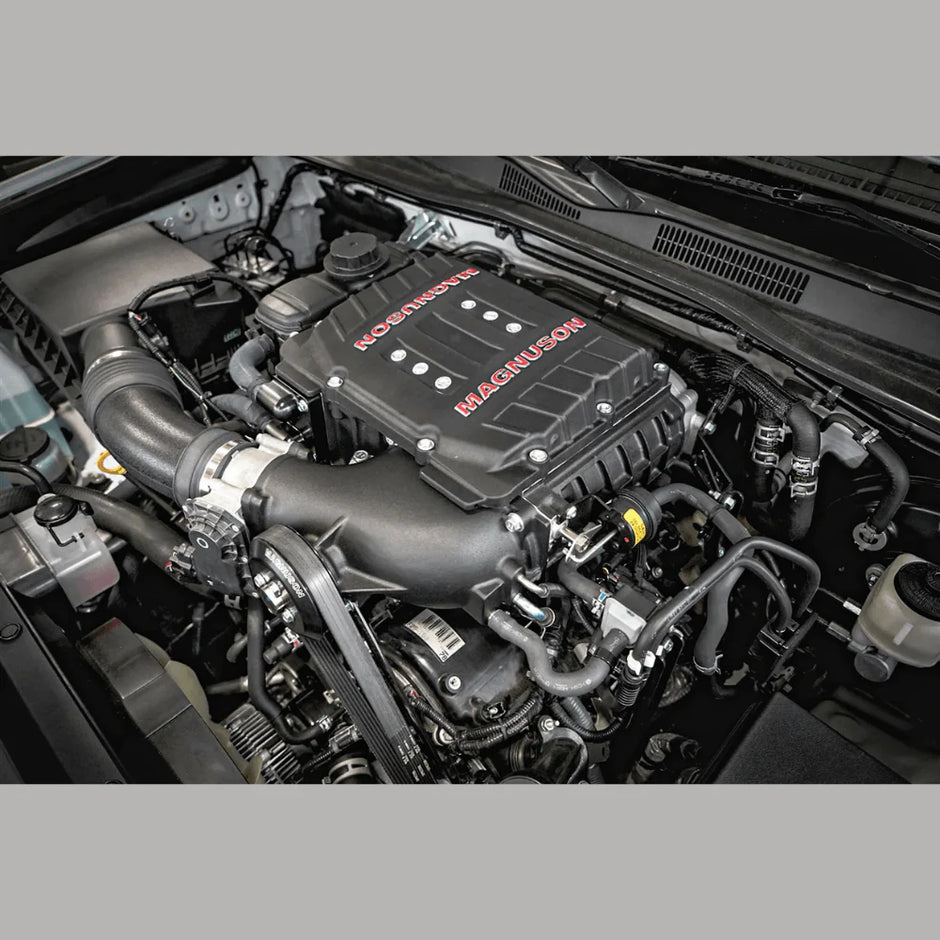

Magnuson’s Toyota Tacoma TVS1900 Supercharger System is built specifically for 2016–2023 models equipped with the 3.5L 2GR-FKS V6 engine. By precisely pairing the TVS1900 supercharger with the 3.5L 2GR-FKS platform, Magnuson engineers created a direct bolt-on system that provides V8-level horsepower at an affordable price point.

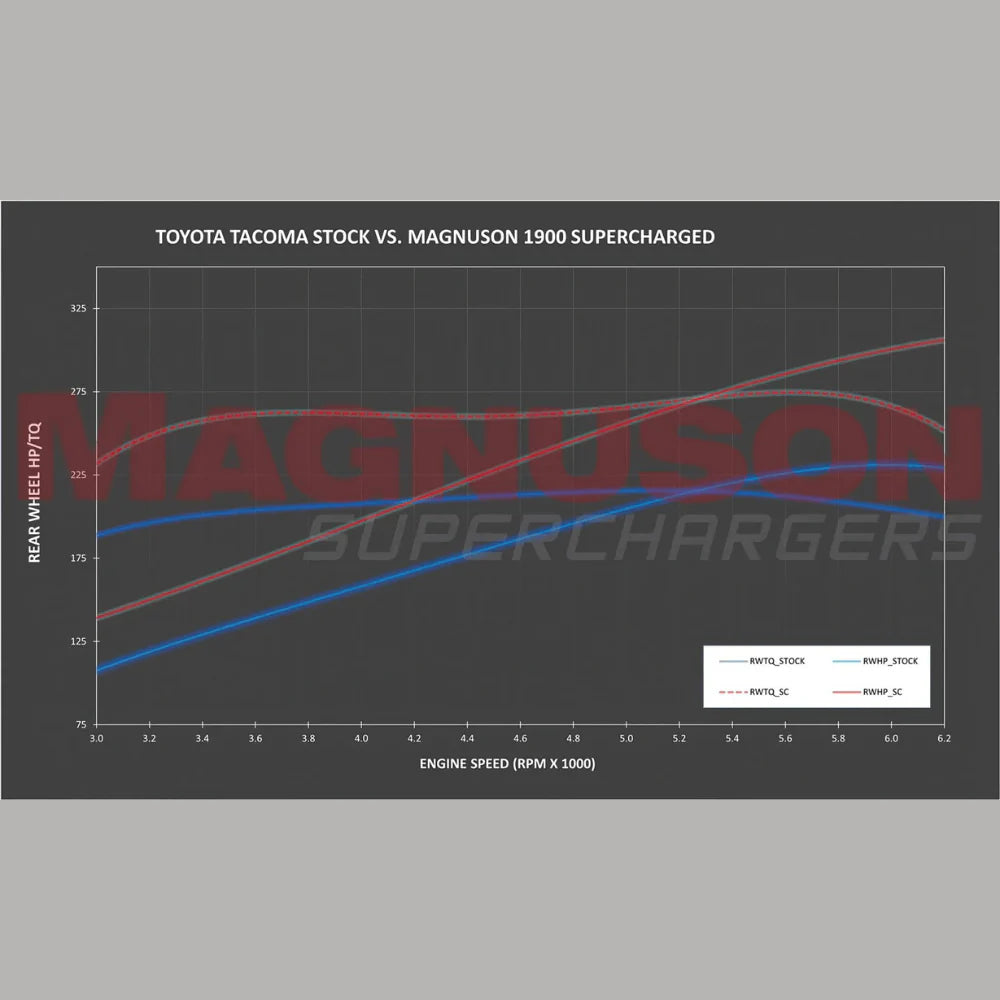

With the vehicle in stock form and no additional system modifications, this kit produces 5–6 psi for 370+ horsepower and 330+ ft-lbs of torque at the crank. That translates to approximately 308 horsepower and 275 ft-lbs of torque at the rear wheels. That’s a 32% power increase over the stock V6.

Designed for durability, the system features a high-thermal-transfer intercooler for maximum air-charge cooling, helping deliver extremely low inlet air temperatures and consistent power from startup to shutdown. To reduce belt slip even in demanding 4-wheeling conditions, the TVS1900 also includes a custom-engineered supercharger belt-drive system for dependable performance both on and off the road.

This system was developed as a direct bolt-on kit, allowing for minimal downtime and a simple installation process. An enthusiast with basic tools can install it over a weekend, while an experienced installer can typically complete the job in about a day. A Magnuson calibration is included, so the tuning is already handled. The TVS1900 also fits and looks like an OEM component, as if it was factory-installed. Since no cutting or welding is required, the vehicle can easily be returned to stock. The supercharger itself is maintenance-free, pre-filled, and sealed, with nothing to check or refill for the life of the engine.

Fitment: Available for all 2016–2023 Toyota Tacoma models, including stock and modified vehicles.

Please Note :
- CARB Certification has been approved for the 2016-2021 Toyota Tacoma.
- Calibration available for stock or modified vehicles. Modifications must be documented when submitting the Calibration File Form to Magnuson. For extreme builds, please contact us first to verify suitability for tuning in advance of purchasing kit.
- NOTE TO CUSTOMERS WITH MODIFIED VEHICLES: The Magnuson calibration included with this kit is intended to work on stock vehicle configurations, including stock trim levels and stock OEM vehicle options. Modifications to your stock vehicle including, but not limited to, engine, flywheel, clutch, torque converter, transmission, wheels, tires, axles, gears, driveshafts, induction system, exhaust system and additional weight (ie. bumpers, racks, etc.) can have a significant impact on your vehicle’s calibration and may require modifications to our calibration as supplied. While we attempt to minimize the need for modifications during our development process, it is impossible for our team to account for all possible build variations/combinations, and in some cases it may be necessary for you to supply an additional element of customization for your vehicle—custom calibration—and to work, at your own direction and expense, with a local service facility to address your unique combination of hardware and make calibration adjustments as necessary. Please be aware that standard product warranties and governmental emissions certifications are predicated on stock vehicle configurations, and vehicle modifications and calibration changes may affect or even void powertrain warranty and emissions certification status (such as CARB emissions certification). It is the sole responsibility of the customer making a warranty claim to prove that any vehicle modifications and calibration changes were within warranty. It also is the sole responsibility of the customer to determine if the modifications and changes comply with all local, state and federal emissions standard.

Features:

• Positive displacement Roots design with OEM-level durability
• Roots type blower provides instant torque even down low
• Instant Response – No Turbo Lag
• Over 370 hp / 330 ft-lbs @ crank
• Robust Cooling Keeps IATs Consistent for All Day Power
• Custom engineered supercharger belt-drive system for worry-free driving both on and off-road
• Direct bolt-on installation with OEM look, fit and finish
• Maintenance Free Design – Nothing to fill or oil to change
• Includes calibration
• CARB EO# - D-488-59

Specs:

• Large capacity front inlet/front-drive TVS1900 Supercharger assembly
• Positive displacement Roots-type design using Eaton TVS Technology with proven OEM durability
• Integrated vacuum bypass for instant boost response at low engine speeds
• Exceptional vehicle performance with over 373HP and 332ft-lbs of torque at the crank (~308 RWHP)
• High-efficiency intercooler system for maximum charge air cooling and sustainable performance
• Custom engineered supercharger belt-drive system for worry-free driving both on and off-road
• Waterproof intercooler pump for reliable performance in wet conditions
• Full bolt-on installation with OEM look, fit and finish
• Proven maintenance-free supercharger technology. No added complexity of external supercharger oil cooler/heaters for extreme climates.
• Includes calibration, CARB EO# - Pending

Warranty:

• 3-Year-Limited-Warranty
  With decades of OEM supply experience, Magnuson Superchargers proudly stands behind its industry-leading product reliability and is now offering a Limited Power Train Warranty for our supercharger systems. Best of all its FREE with our Standard 3 Year / 36,000 Mile warranty program!


More info here

Special notes:
